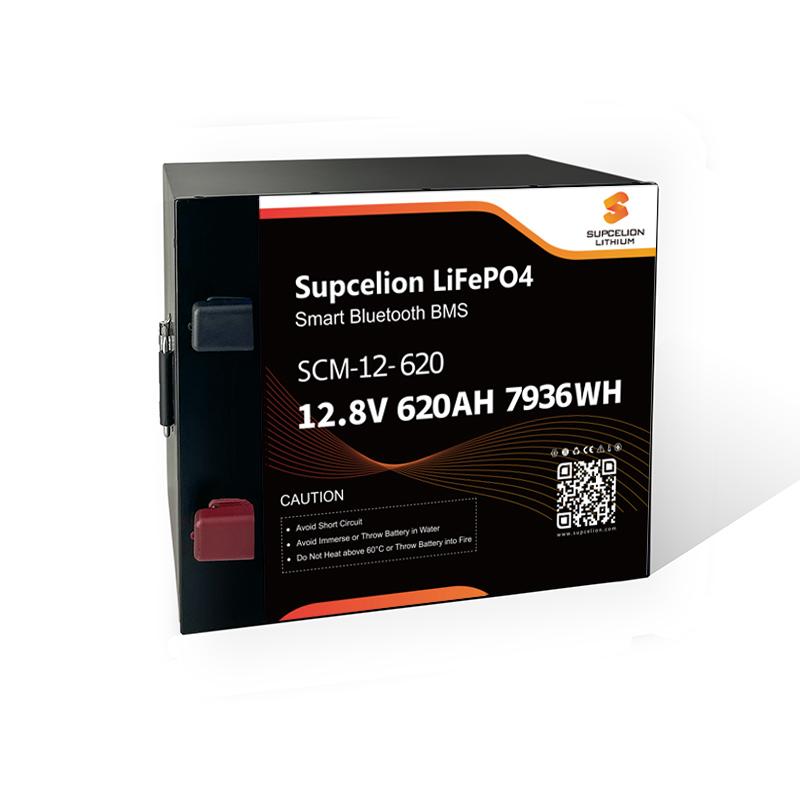

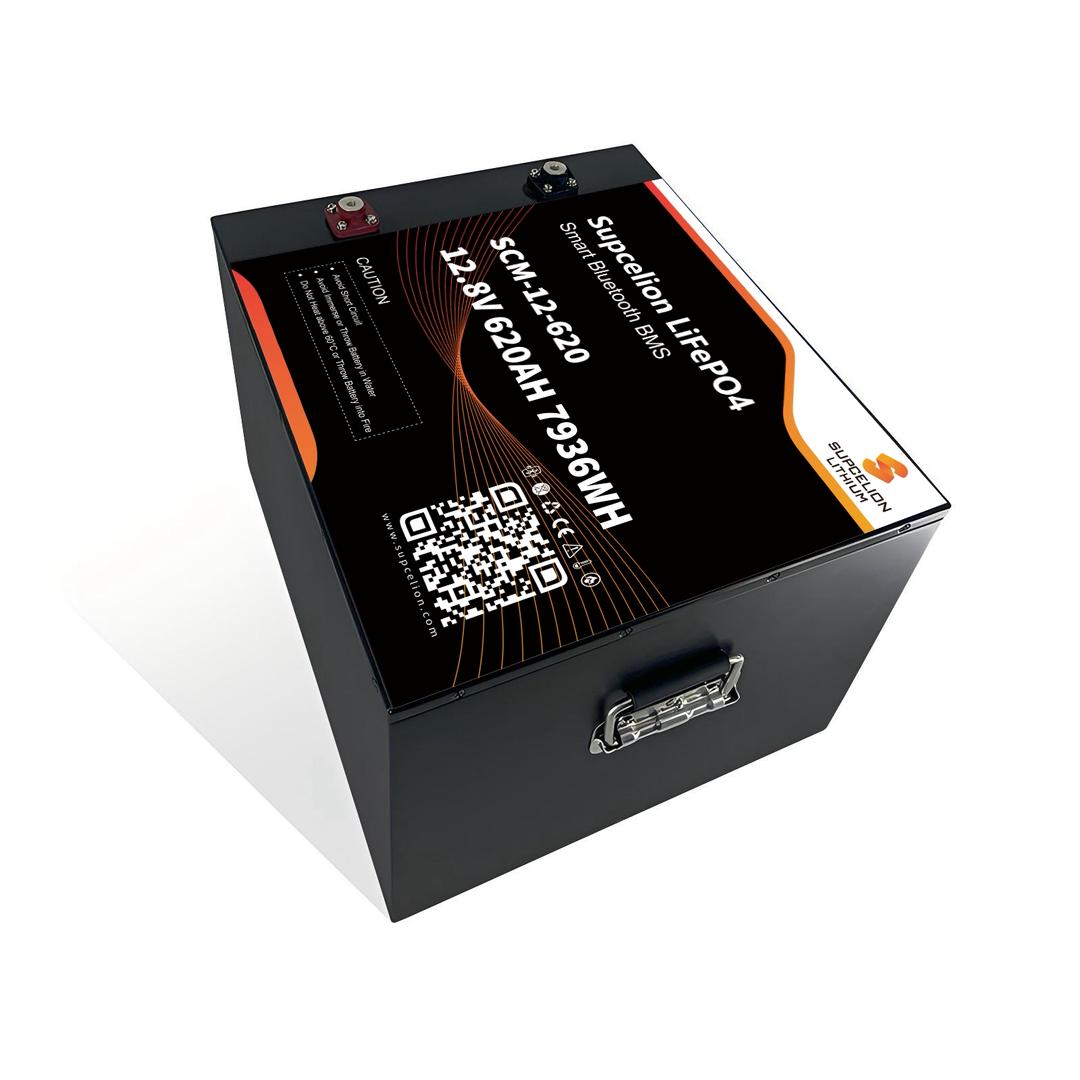

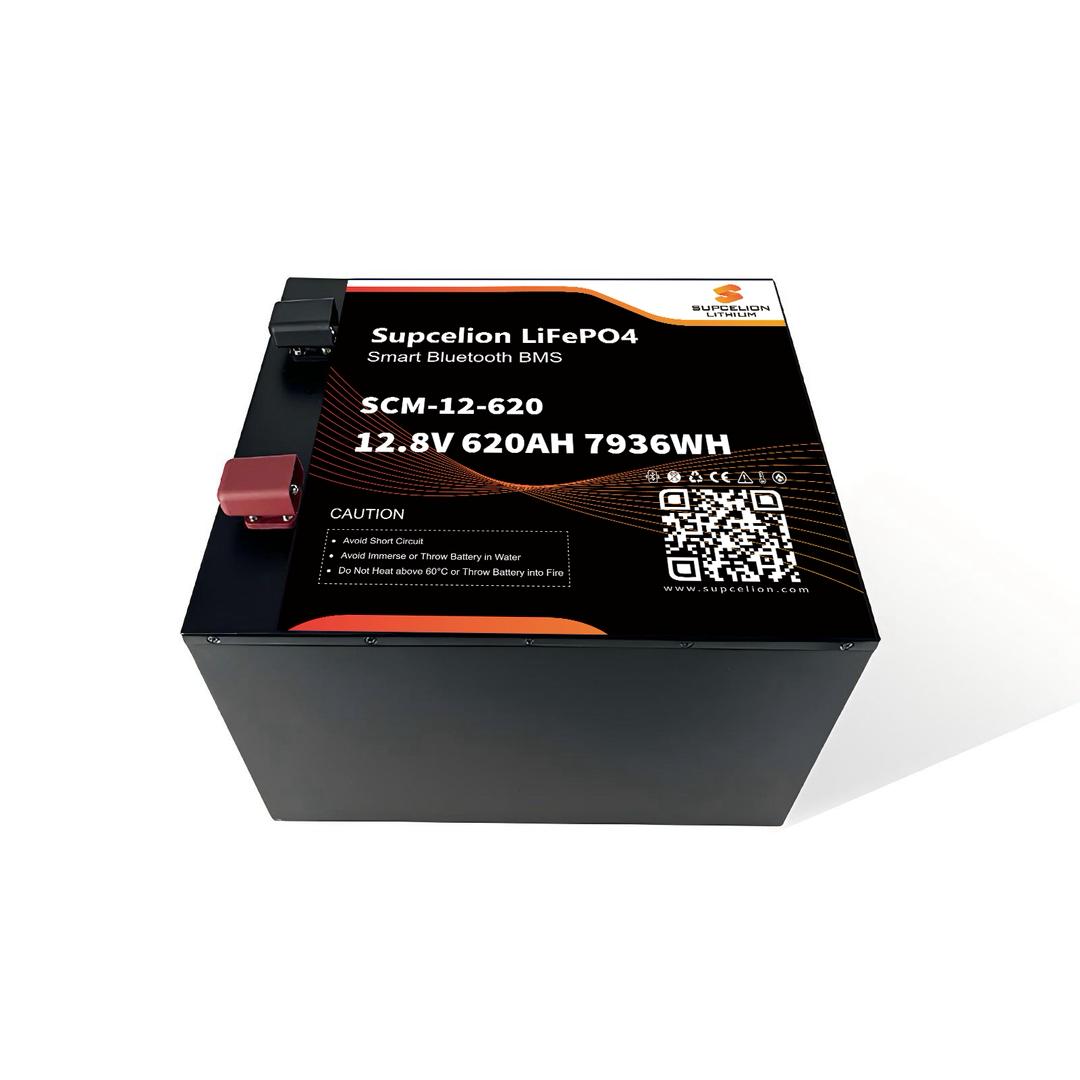

Supcelion 12.8V 620Ah Lithium Battery with Bluetooth

LITHIUM IRON PHOSPHATE BATTERY

Compared with traditional batteries, our lithium iron phosphate batteries (LiFePO4) has many advantages:

• IEC 62619 certified
• 5-year manufacturer’s warranty
• The safest technology, without risk of fire or explosion
• Long service life
• Constantly improving storage capacity
• High stability even under extreme loads
• No memory effect, no need for full charge and discharge cycles
• High performance even under extreme conditions
• Deep and regular discharge and charging efficiency
• Small size and lightweight

Integrated Bluetooth 4.0 monitoring

• You have all important battery data always on your smartphone or tablet.
• The application displays the data in real time.

• SPECIFICATIONS

  Basic Information
  	Model	12.8V 560Ah
  	BMS (Battery Management System)	Integrated
  	Rated capacity	560Ah/7168Wh
  	Number of cycles	>4000
  	Weight	60.05kg

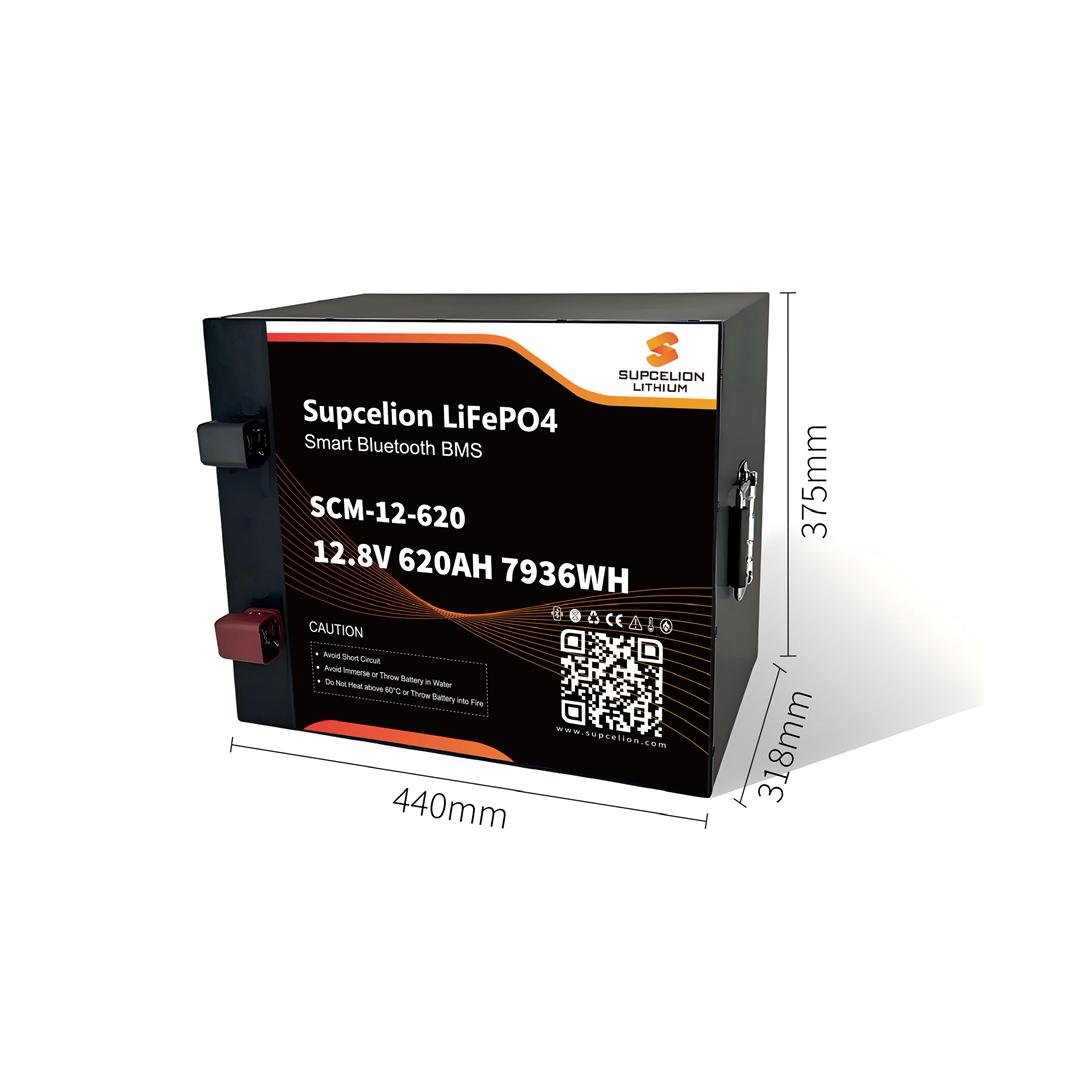

  	Dimensions (Lx Wx H) in mm	440*318*375 (440*300*375 Excluding terminal）
  	Operating voltage range	10-14.6V
  	Rated voltage	12.8V
  	Warranty	5-year
  Charge	Charging characteristics	CCCV/IU
  	Charging voltage	14.6V
  	Recommended charge current	112A
  	Maximum charge current	200A
  Discharge	Maximum discharge current	200A
  	Discharge cut-off current maximum(5~ 15s)	660±100A
  Temperature	Temperature range (discharge)	-20 ~ 60℃
  	Temperature range (charge) *	0 ~ 55℃
  	Temperature range (storage)	-5~ 35℃
  	Ingress protection code	IP62
  	Application/ Interconnection	Series and parallel connection
  Material	Material of case	Metal
  	Terminals	M8
  Intelligent monitoring	Bluetooth	Bluetooth 4.0 with smartphone app
  	Connection	Can be connected in 4 series and 4 parallel
