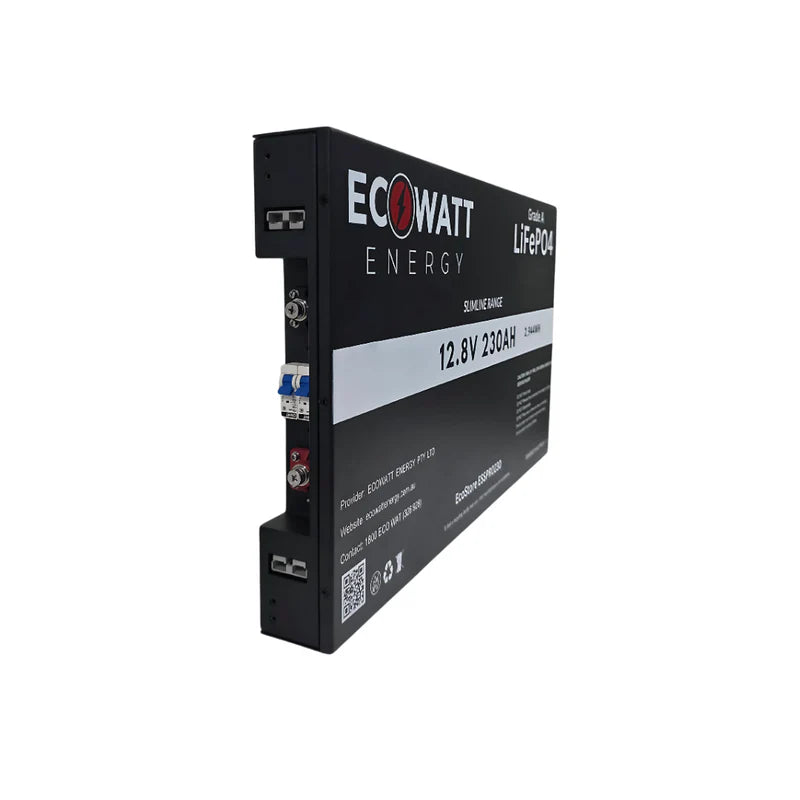

Ecowatt EcoStore Slimline PRO 230Ah 12V LiFePO4 Battery - Bluetooth

Introducing the EcoStore Slimline Pro 230Ah

Developed from decades of innovation and tested in real-world conditions, the EcoStore Slimline Pro 230 isn't just an upgrade—it's a significant advancement in lithium battery technology. Compared to traditional Li-ion batteries, the ESSPRO230 has enhanced energy density, improved safety, faster charging times, a longer lifespan, and its compact design ensures easy integration into a variety of systems. These features make the EcoStore Slimline Pro 230 the top choice for critical applications where performance and dependability are paramount.

Power with peace of mind

Our EcoStore Slimline Pro 230 features Grade A EVE prismatic cell technology and a robust 250A Software-Controlled JBD Battery Management System. This setup enhances safety and provides comprehensive protection against common battery issues such as overcharging, overdischarging, overheating, or short circuits. With this battery, you can expect stellar performance and durability, even in tough conditions.

Specs

Type of Battery: Lithium-Iron Phosphate (LiFePO4)

Standard Voltage: 12.8V

Usable Capacity: 230Ah (2944Wh)

Cycle Life: 4000 @ 80% DoD

Charging Cut-Off Voltage: 14.8±0.2V

Discharge Cut-Off Voltage: 9.0±0.2V

Over-Charge Recovery Voltage: 14±0.2V or Discharge ≥ 2A

Over-Discharge Recovery Voltage: 10.8±0.2V or Charge ≥ 2A

Max. Continous Charging: Current 250A (0.87C)

Max. Continous Discharging: Current 250A (0.87C)

Peak Discharge Rate (1.5s): 1000±200A (4C+)

Battery Pack Assembly Method: 4S1P

Cell Type: EVE Grade A 3.2V 230Ah LFP Prismatic Cell

BMS Brand: JBD Smart 250A-S Programmable BMS

Charging Type: CC/CV

Charging Temperature: -10 ~ 65°C

Discharging Temperature: -20 ~ 75°C

Charging Temp Protection: ≥65±5℃

Discharging Temp Protection: ≥75±5℃

Maximum Battery Connectivity: Unlimited in Parallel/Four in Series

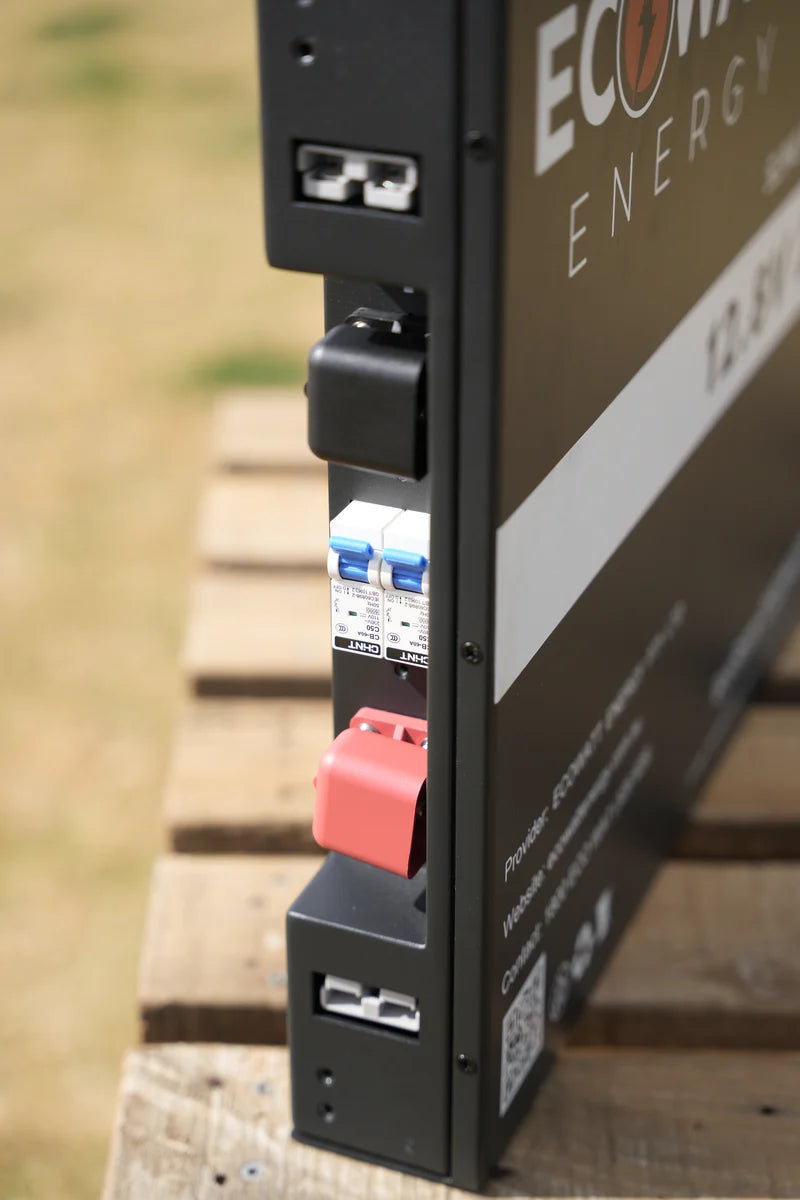

Input/Output Port Type: M8 + 2 x 50A Anderson Outlet With Circuit Breaker Protection

Recommended Maximum Tightening Torque: 9.0 Nm

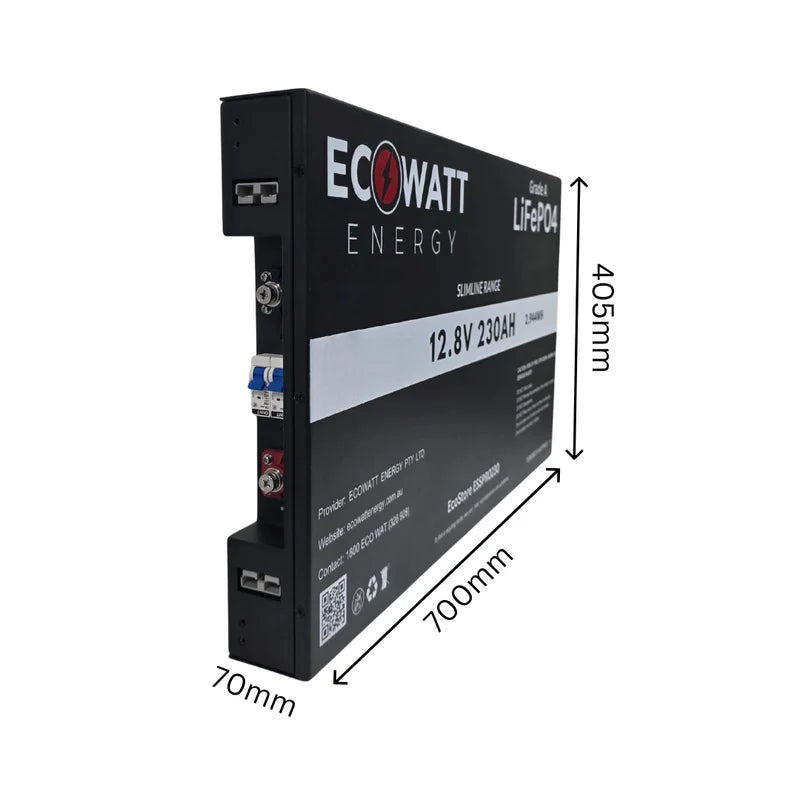

Dimensions: 700x70x405mm

Weight: 23KG

Case Material: Aluminium

Ip Rating: IP33

Certifications: IEC62619/UL1642A/UN38.3/ROHS

Warranty: 5 Year Full Replacement Warranty

Bluetooth BMS: Yes, via EcoWatt Energy Connect app+

FAQ

What is an A-Grade Cell?

An A-Grade Cell refers to a battery cell that meets the highest standards of quality and performance. These cells are rigorously tested and graded based on their capacity, voltage, and overall reliability. At EcoWatt, we meticulously select only the highest quality A-Grade Cells to ensure superior cycle life, consistent performance, longer lifespan, and greater safety compared to lower-grade cells, making them the top choice for premium battery products.

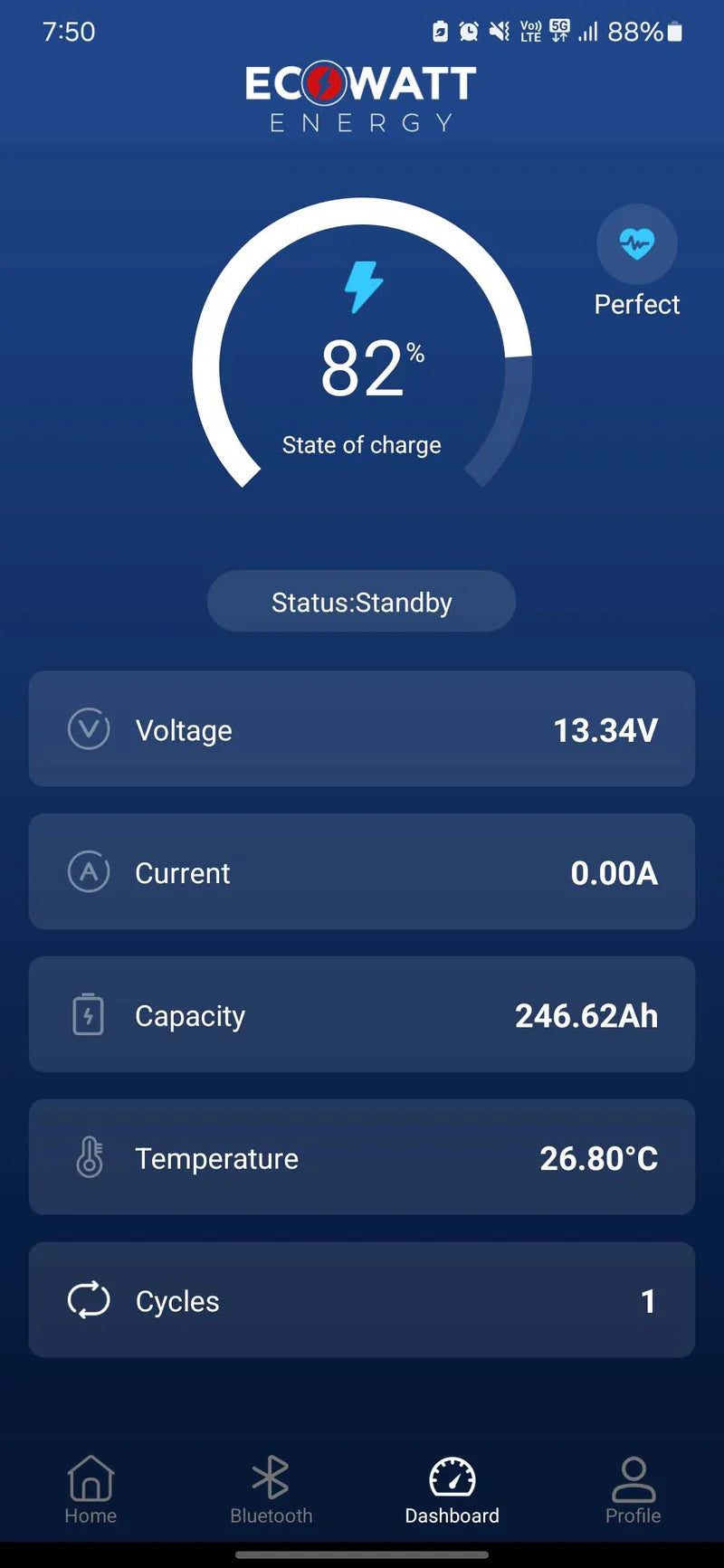

How do I use the Bluetooth Monitoring Feature?

To use the Bluetooth Monitoring Feature, first download the EcoWatt Energy Connect app from the Apple App Store or Google Play Store. Then, open the app, connect to your battery, and start monitoring.

My Charger says the battery is fully charged, but the app is not showing 100% charge, why?

Sometimes, the State of Charge (SOC) display on the app may not be fully accurate until the battery has gone through a few full charge and discharge cycles. The BMS needs time to 'learn' the battery’s parameters and adjust accordingly before the Bluetooth monitoring provides precise readings.

What are your Recommended Charger/Shunt Settings?

• Charged voltage: 14v
• Bulk charging voltage: 14.2v
• Float voltage: 13.5v
• Storage voltage: 13.3v
• Discharge floor: 10%
• Tail current: 1%
• Peukert exponent: 1.01
• Charge efficiency factor: 99%
• Current threshold: 0.1A
• Charge detection and Time to go averaging period: These can remain unchanged

Can I use the EcoStore Slimline Pro 230 under the bonnet?

No, it is not recommended to use the EcoStore Slimline Pro 230 under the bonnet. We advise against using our LiFePO4 batteries for under bonnet applications due to their lower thermal tolerance compared to other battery types, such as lead-acid or AGM. The engine compartment can reach high temperatures, particularly in demanding conditions or during extended use, which can degrade the battery's performance, lifespan, and safety.

Do you offer a Satisfaction Guarantee?

Not 100% satisfied? No stress! Return your undamaged EcoWatt products for ANY reason, within 30 days, and you'll receive a refund, no questions asked!

What are your delivery options?

Enjoy reliable, convenient & FREE shipping on all orders Australia-wide. We offer a fast 24-hour dispatch turnaround time, so you can get your order in no time!
